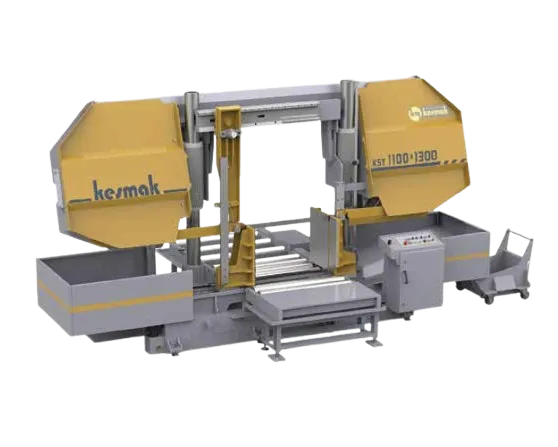

Kesmak KSY 1100x1300 Column Semi-Automatic Band Saw

Kesmak KSY 1100x1300 Column Semi-Automatic Band Saw

The Kesmak KSY 1100x1300 is a high-performance and reliable column semi-automatic band saw machine designed for heavy industry and metal processing sectors. With its large cutting capacity and robust construction, it ensures precise and efficient cutting of challenging materials.

Advantages

• Offers high cutting precision and repeatability.
• Can process materials of various sizes with its large cutting capacity.
• Minimizes vibration and ensures long-lasting use thanks to its robust column structure.
• Reduces operator workload and increases efficiency with its semi-automatic operating mode.
• Provides flexibility with an easy-to-use control panel and adjustable cutting parameters.

Usage Areas

• Steel construction and heavy industry manufacturing
• Metal processing workshops and factories
• Cutting large profiles and pipes
• Machine manufacturing industry
• Foundries and iron and steel plants

Technical Specifications

• Cutting Capacity (Round): 1100 mm
• Cutting Capacity (Rectangular): 1100x1300 mm
• Band Saw Blade Size: 9500x67x1.6 mm
• Motor Power: 7.5 kW
• Hydraulic Motor Power: 2.2 kW
• Blade Speed: 20-100 m/min (Variable)
• Machine Weight: Approximately 12000 kg

Frequently Asked Questions

• Question 1: What materials can the Kesmak KSY 1100x1300 cut?
  Answer: It can cut a wide range of materials such as steel, stainless steel, alloy steels, cast iron, and other metals with high efficiency.
• Question 2: What does the semi-automatic feature mean?
  Answer: In semi-automatic mode, the cutting process occurs automatically, and the saw arm automatically lifts at the end of the cut. Material feeding and clamping are performed manually by the operator.
• Question 3: How is the machine maintained?
  Answer: Regularly check blade tension, hydraulic oil level, and coolant. Lubrication of moving parts and chip cleaning should be done periodically. Detailed maintenance instructions can be found in the user manual.
